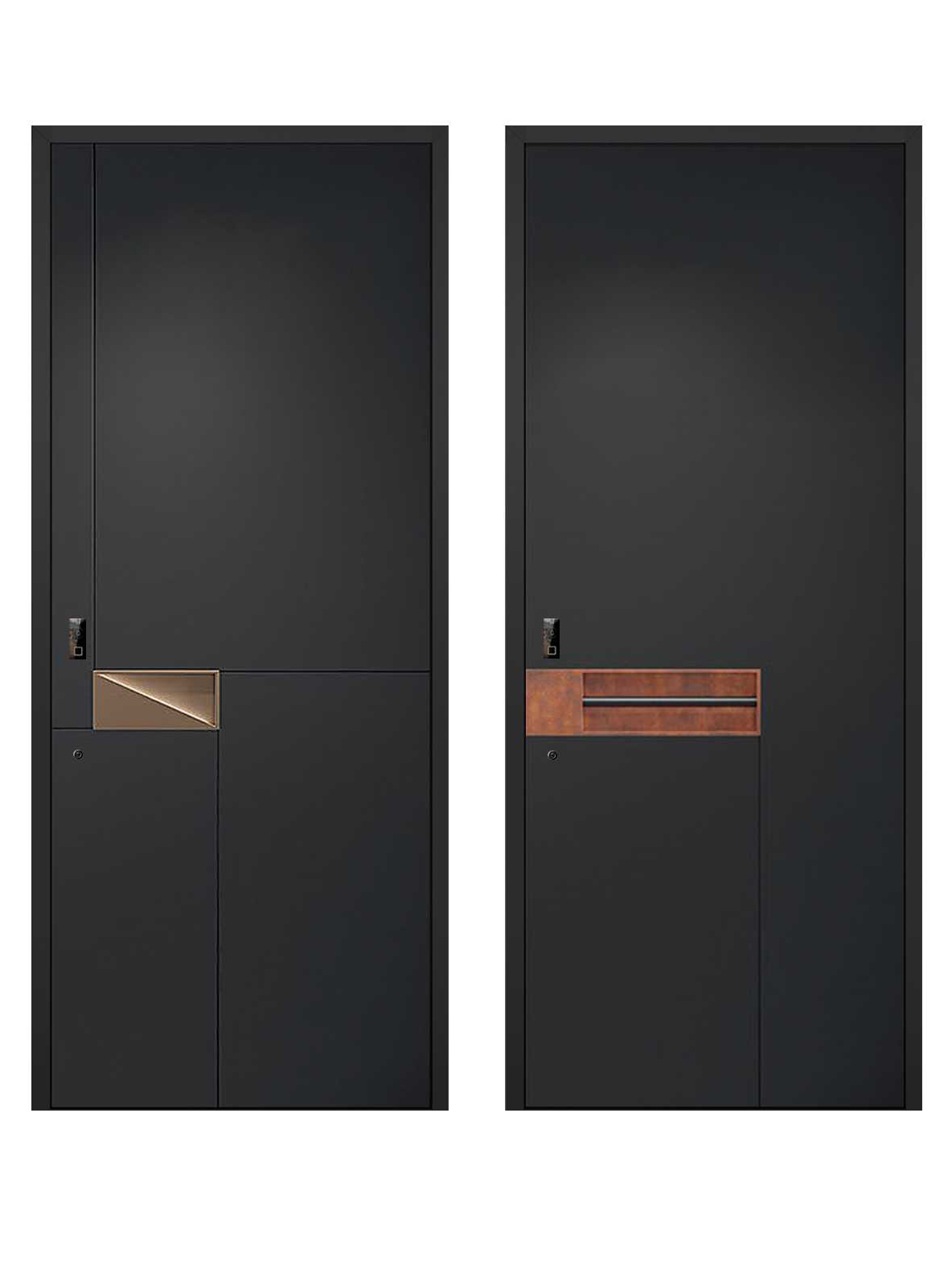

Minimal Aluminum Panel
Flat dark aluminum panels with restrained metal accents for clean modern facades.
Door Type
Single Door
A refined and versatile entrance format for modern homes, villas and architectural residences — flexible in proportion, finish, handle style and optional glass configuration.

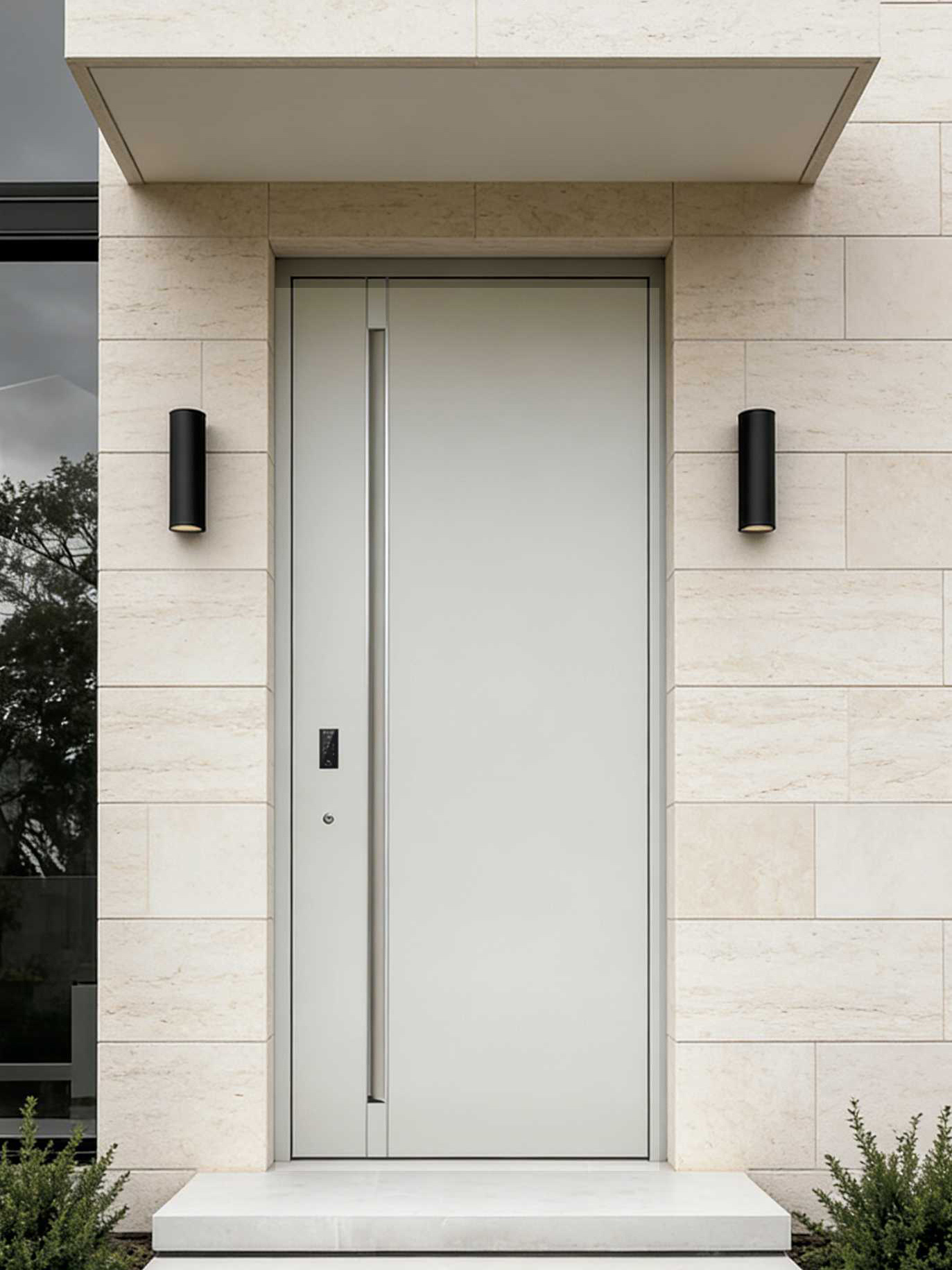

Overview
Choose the design language before choosing the final model.
The Single Door series is the most adaptable entry format in the IANVS door type range. It can be configured for minimal aluminum panels, carved or textured details, black glass accents, glass insert designs, timber-look finishes and classic panel styles.
This page keeps the selection process simple: choose a style direction first, then confirm technical configuration, handle, glass, lock and rear panel options.
Style Directions
Six ways to express a single entrance.
The six directions below are used to guide visual selection. Each can be paired with a suitable structural system, rear panel material, handle, glass and smart lock configuration.

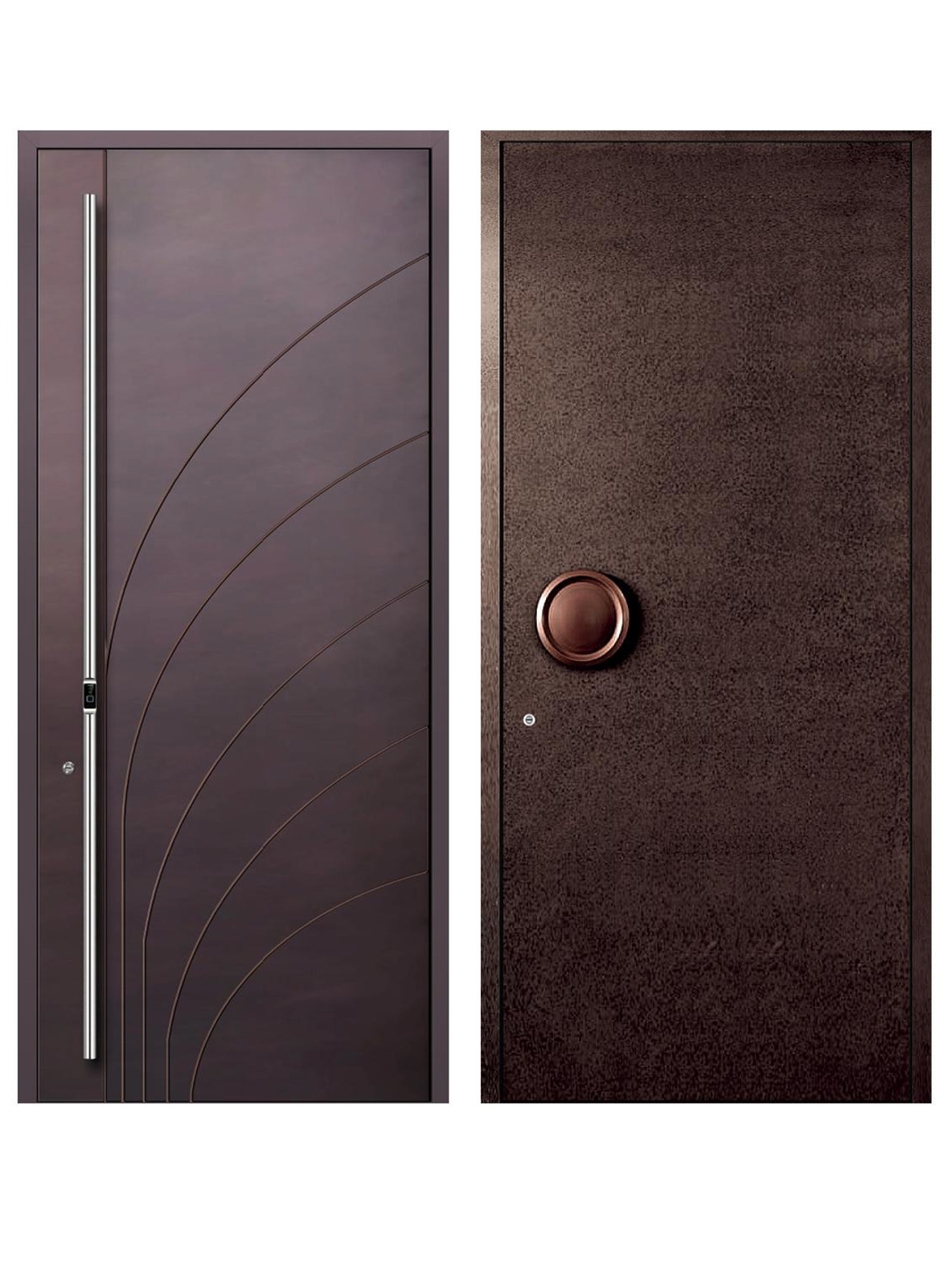

Carved & Textured Detail
Curved carving, textured finishes and statement handles for a more crafted entrance.

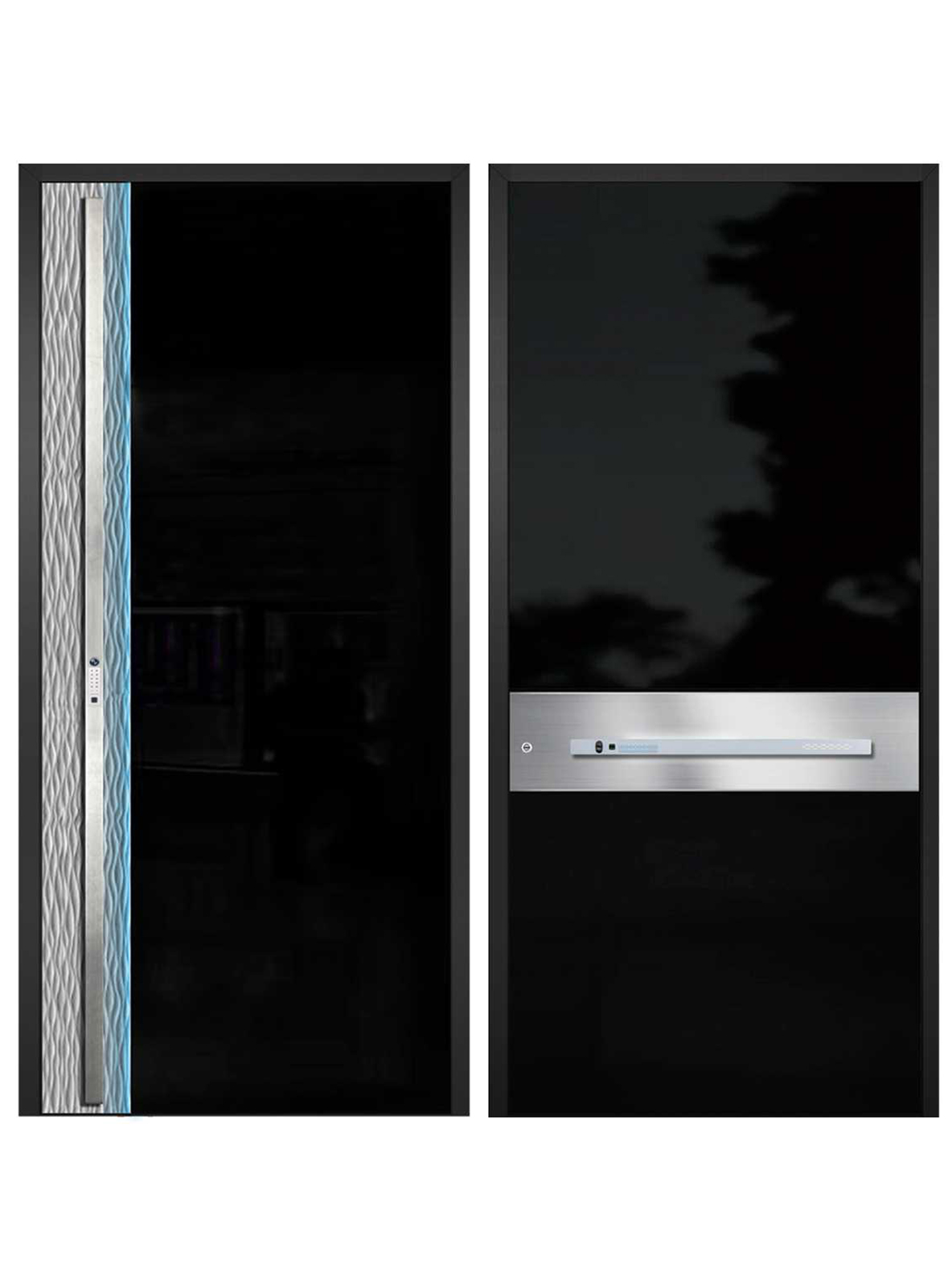

Black Glass & Steel Accent
Gloss black surfaces, stainless steel accents and strong contrast for contemporary luxury homes.

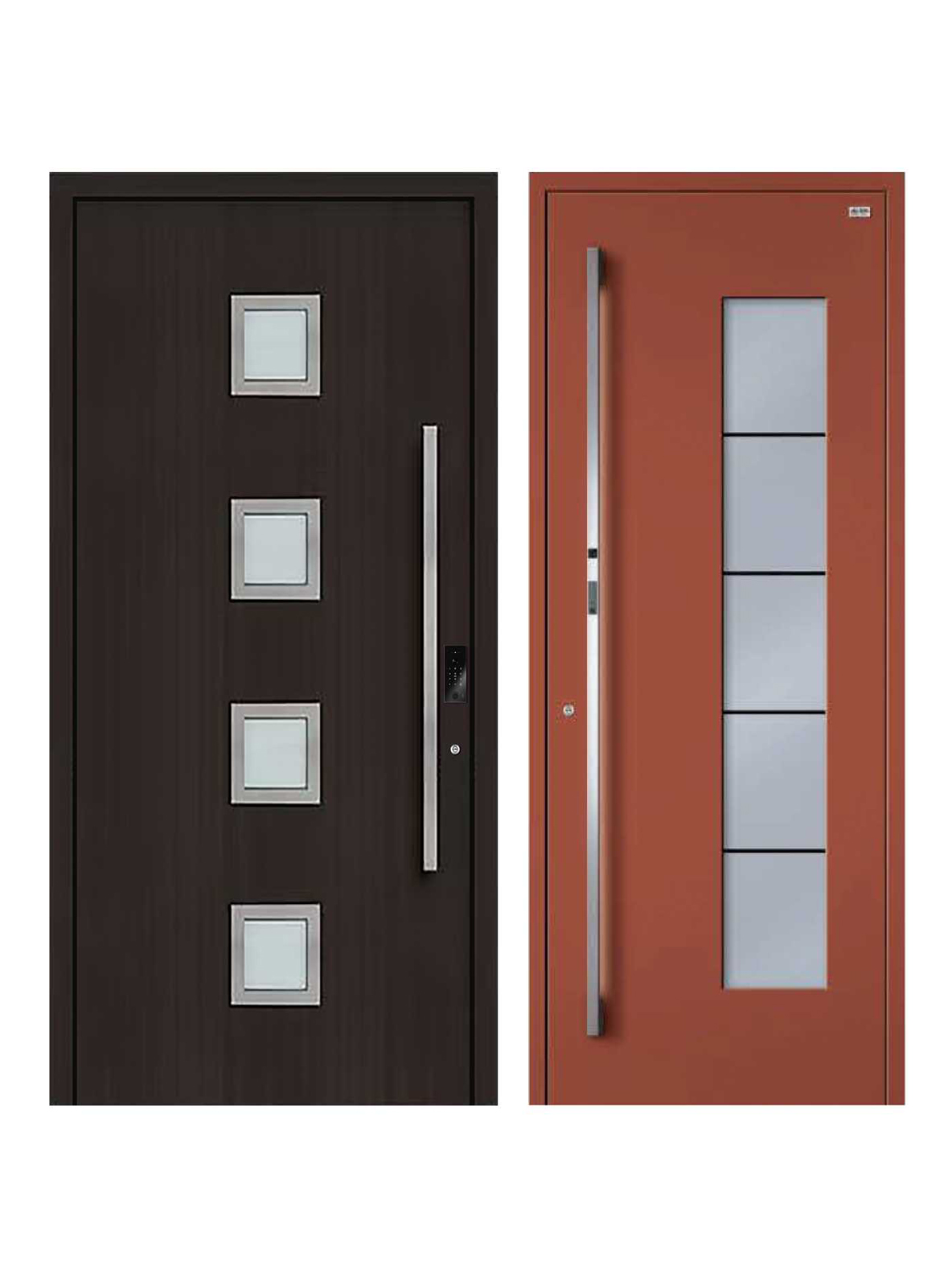

Glass Insert Design
Square or vertical glass inserts introduce light while keeping a balanced single-door composition.

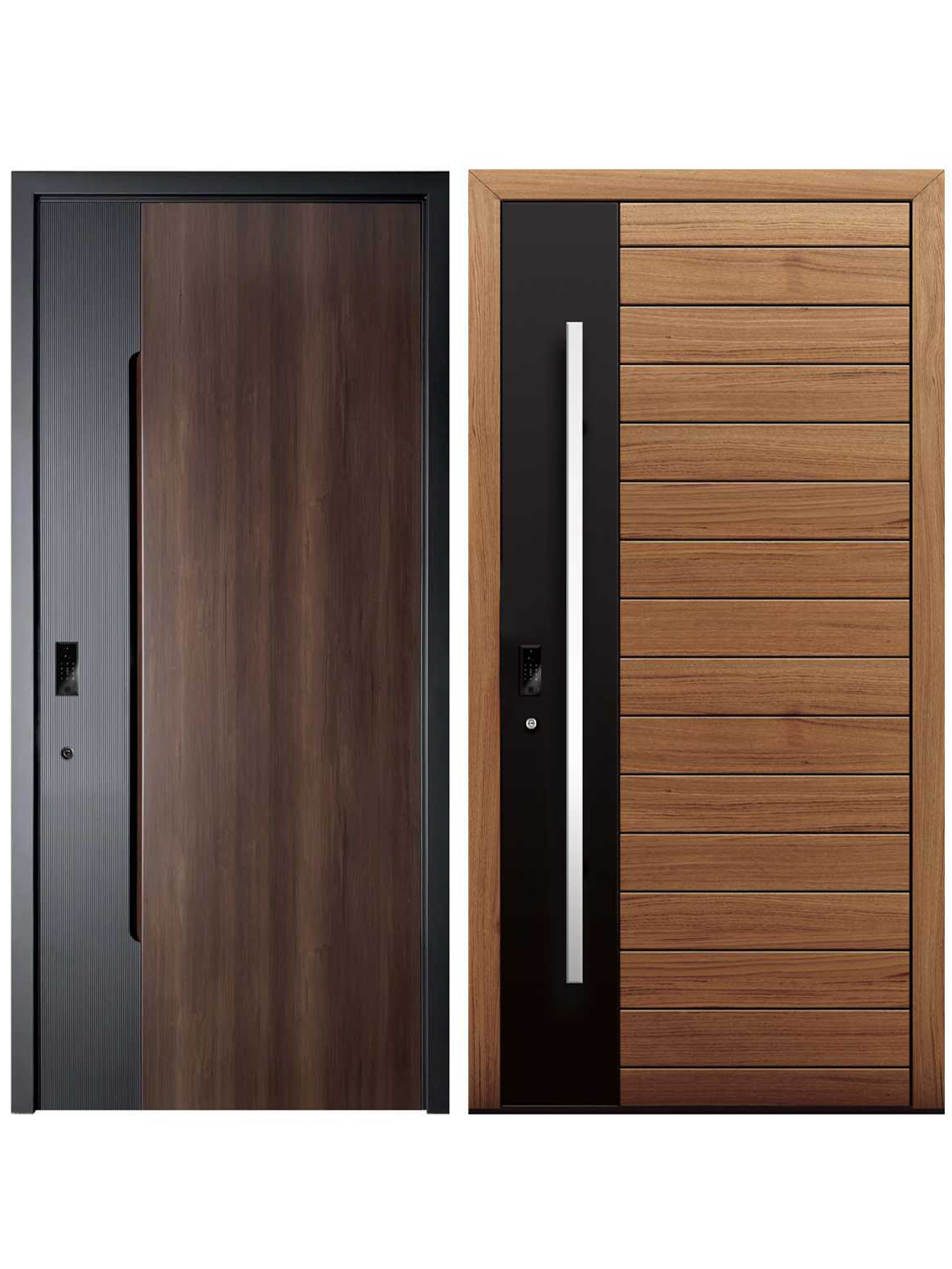

Timber-Look Finish
Wood grain surfaces, vertical detailing and slim handles for warm contemporary entrances.

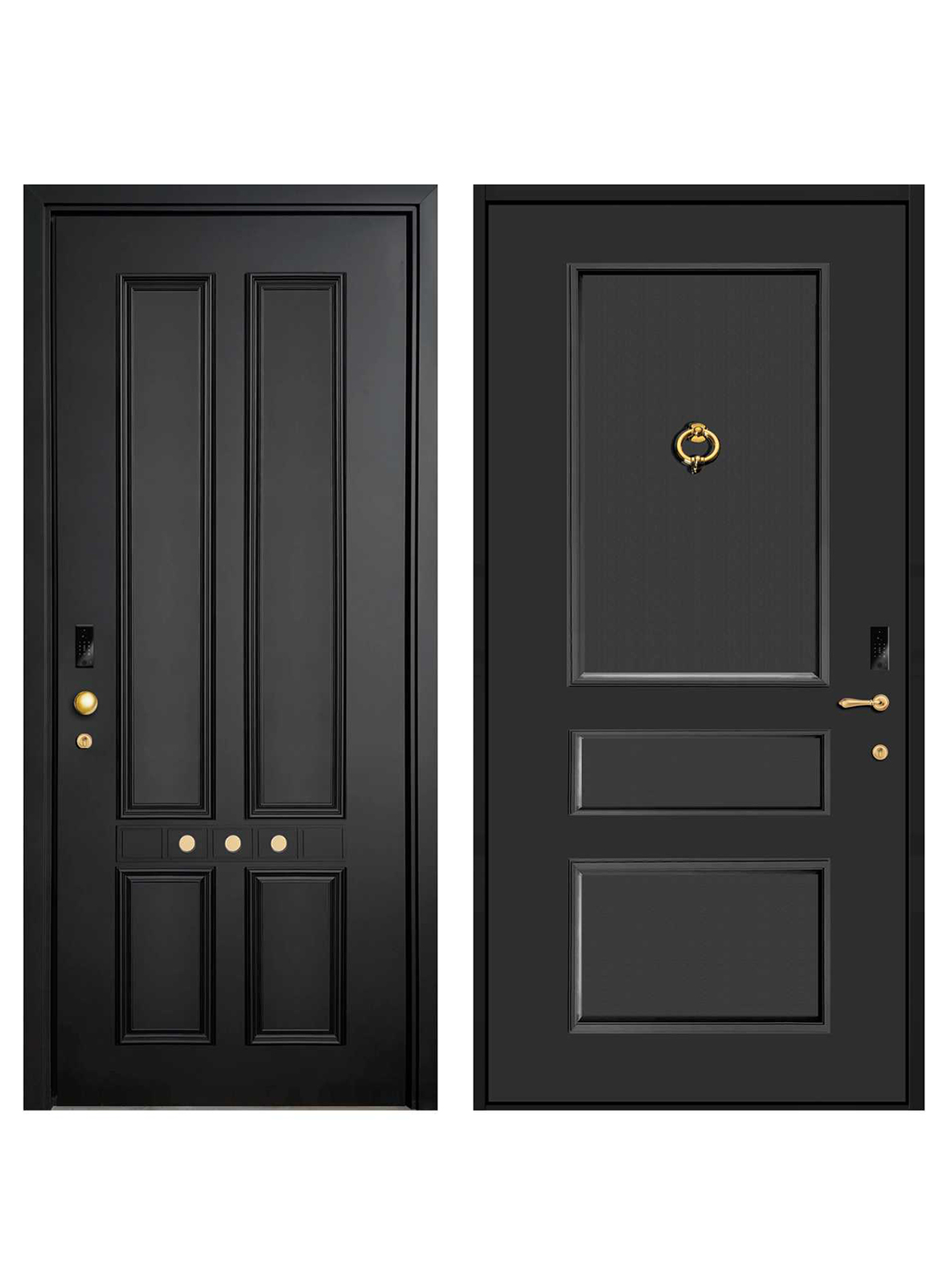

Classic Panel Style
Traditional framed panels and decorative hardware for formal or European-inspired facades.
Technical Configuration
Built as a system door, not just a decorative panel.
Single Door styles can be configured with reinforced aluminum profiles, selected rear panel materials, concealed hinges, premium sealing and compatible smart lock systems.
Some specifications vary by selected style and structural system. Final configuration should be confirmed according to project requirements, opening size and selected options.
Front PanelAluminum panel
Rear Panel3mm–12mm, available in aluminum, copper, wood, stone and other selected materials
Profile MaterialHigh-strength 6060-T66 aluminum alloy
Profile ThicknessReinforced profile thickness: frame ≥3.0mm, leaf ≥2.5mm
Surface FinishAkzoNobel coating, with selected styles available in wood grain transfer finish
Core MaterialA2-B1 class fire-resistant board option, subject to selected configuration
Corner JointCorner brace + laser welding
SealingAutomotive-grade EPDM soft-hard composite seal + vulcanized welding
Profile GrooveEuropean standard 24U groove
Smart LockGerman GU European standard 24-point multi-lock or Bina smart lock
Frame-Leaf ConnectionKS dedicated stainless steel concealed hinge
Key Options
Selected options by configuration.
The available options vary by selected door style. These groups summarize the most important decisions without turning the page into a catalogue.
Handle Options
Stainless steel round tube, precision-carved, recessed, recessed with ambient lighting, aluminum square tube and smart retractable handle options.
Glass & Thermal Break
Selected configurations support PA66GF25 / 32mm Technoform thermal break and 5+12A+5 or 5+12A+5+12A+5 Low-E glass options.
Rear Panel Materials
Rear panel options include aluminum, copper, wood, stone and other selected materials depending on the project requirement.
Lock & Hinge System
German GU European standard 24-point multi-lock or Bina smart lock with KS dedicated stainless steel concealed hinge.
Applications
Suitable for a wide range of residential entrances.
Single doors work especially well for modern homes, villas, townhouse entrances, renovation projects and residences where a clean, balanced entry proportion is preferred.
Modern HomesMinimal panels and slim handles for clean facades.
VillasClassic, timber-look or statement colour styles for refined entrances.
RenovationsFlexible appearance options for upgrading existing entry openings.
Glass-Integrated EntrancesOptional glass inserts help balance light, privacy and facade rhythm.
