Frame Depth
Deeper multi-chamber frame structure designed for enhanced thermal insulation and stability.
Product Series
125 System Pivot Door
A premium oversized pivot entry door system engineered for large custom openings, strong structural performance, thermal comfort and architectural impact.
Overview
Oversized pivot entrance with refined system engineering.
The 125 System Pivot Door is designed for villas, luxury residences and architectural projects requiring larger dimensions, a strong facade presence and a smooth pivot opening experience.
Its 125mm frame depth, 125mm door leaf, hydraulic 90° positioning pivot hardware, multi-chamber structure and triple-seal design support stability, comfort and daily-use performance.

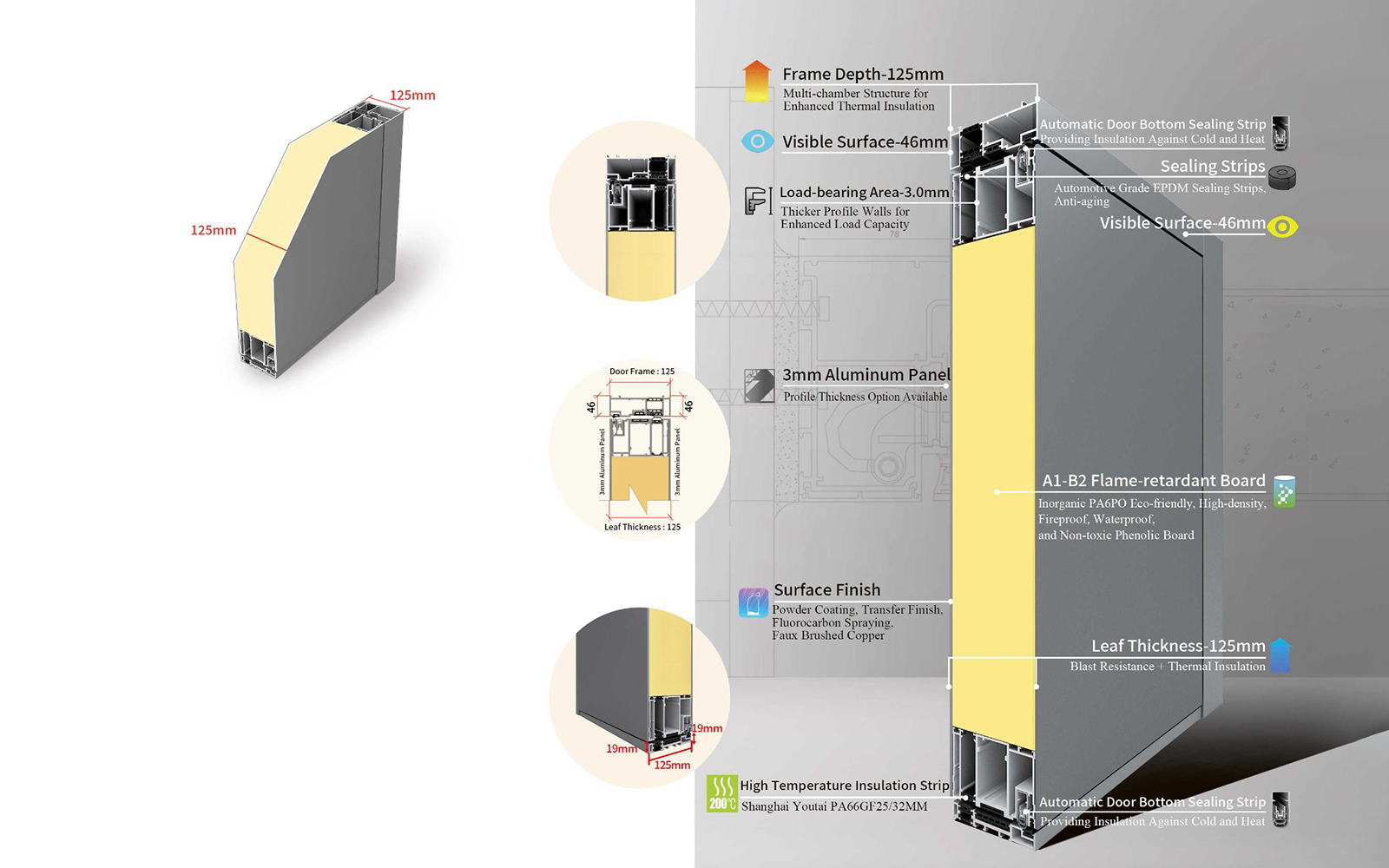

Structural Features
Designed for large custom sizes and stable pivot movement.
The 125 pivot system combines original alloy profiles, PA66 thermal barrier insulation, automatic door bottom sealing and robust pivot hardware for demanding architectural entrances.
Door Leaf Thickness
Thicker door leaf construction supports oversized customization and a substantial entrance presence.
Load-Bearing Area
Thicker profile wall reference supports enhanced load capacity for large-format pivot doors.

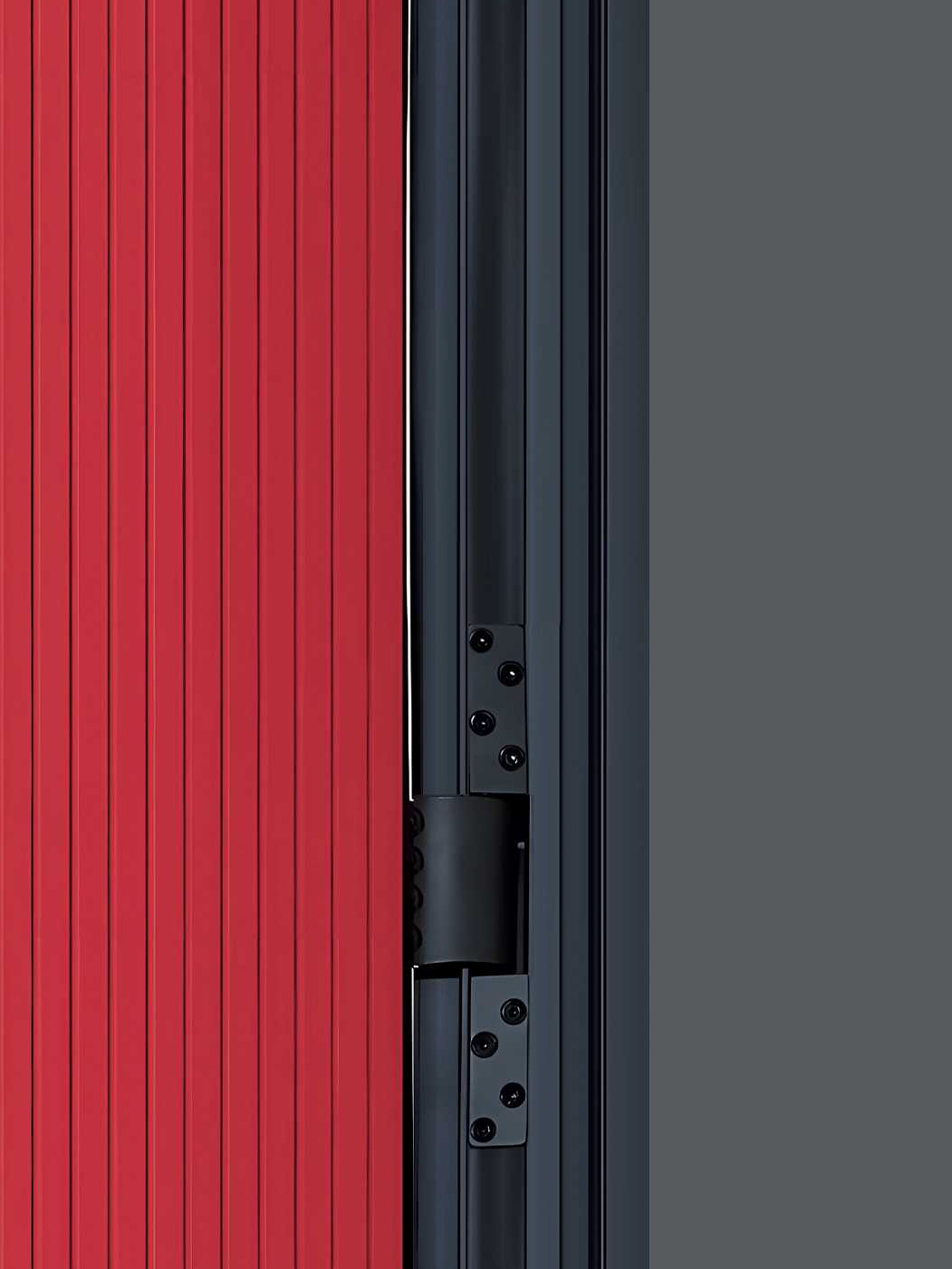

Hydraulic Hardware
Integrated pivot hardware supports smooth movement, stable closing and 90° positioning.
System Structure
Multi-chamber pivot system with automatic bottom sealing.
The 125 System Pivot Door uses a multi-chamber aluminum alloy structure with PA66 thermal barrier material to support insulation and temperature separation.
Automatic door bottom sealing strips, automotive-grade EPDM sealing and high-temperature insulation strips help improve comfort, sealing and adaptability across different climate conditions.
Performance Highlights
Built for statement entrances and demanding custom projects.
Large Size Customization
Supports customized non-standard extra-wide and extra-tall dimensions, with tailored finishes for interior or exterior design coordination.
Hydraulic Pivot Hardware
Industrial-grade aluminum profile and hydraulic hardware support smooth operation, stable closing and 90° positioning.
Multi-Chamber Insulation
Multi-chamber aluminum alloy structure with PA66 thermal barrier material helps improve insulation logic and temperature separation.
Triple-Seal Design
EPDM sealing strips, automatic top and bottom sealing and airtight/watertight protection help adapt to different climate conditions.
Automatic Bottom Seal
Automatic door bottom sealing strips help provide insulation against cold and heat while improving the entry experience.
High-Temperature Insulation Strip
PA66GF25 insulation strip options are designed to support elevated temperature resistance and stable system performance.
Specifications
Technical parameters.
Core specification direction for the 125 System Pivot Door. Final configuration should be confirmed according to project size, opening type, hardware selection and finish requirements.
Product Series125 System Pivot Door
Frame Depth125mm
Door Leaf Thickness125mm
Visible Surface46mm visible surface reference
Load-Bearing Area3.0mm profile wall load-bearing area reference
Aluminum Profile6060-T6 industrial-grade aluminum profile
Thermal BarrierPA66 nylon thermal barrier / PA66GF25 insulation strip option
Aluminum Panel3mm aluminum panel options
Sealing SystemTriple-seal design with EPDM sealing strips and automatic top / bottom sealing
Bottom SealAutomatic door bottom sealing strip for insulation against cold and heat
Pivot HardwareHydraulic hardware with stable closing and 90° positioning support
Core MaterialInsulated internal construction with A1-B2 flame-retardant board option
Surface FinishPowder coating / transfer finish / fluorocarbon spraying / faux brushed copper
Finish Options
Tailored finishes for large architectural entrances.
The 125 pivot system can be customized to suit both exterior facade design and interior decor, especially for statement entrances where proportion and material expression matter.
Powder Coating
Durable architectural color finish for modern oversized entry doors.
Transfer Finish
Decorative surface finish for timber-look or texture-inspired pivot door designs.
Fluorocarbon Spraying
Premium exterior finish option for projects requiring stronger weather performance.
Faux Brushed Copper
Luxury metallic appearance for a bold entrance statement.
Oversized Configuration
Custom extra-wide and extra-tall dimensions can be discussed according to project drawings.
Interior / Exterior Coordination
Finishes and style can be selected to coordinate with both outdoor facade and indoor decor.
Applications
Suitable for villas, statement homes and large openings.
The 125 System Pivot Door is ideal for projects where the entrance is a major architectural feature, especially where large scale, premium hardware and custom finish coordination are required.
Luxury VillasOversized entrance system for premium private residences.
Architectural FacadesStrong visual presence for modern and design-led projects.
Large Custom OpeningsSupports extra-wide and extra-tall custom configurations.
Climate-Adaptive EntrancesTriple-seal and automatic bottom seal options support varied climate conditions.
Project Enquiry
Planning a large custom pivot entrance?
Send us your dimensions, drawings or preferred finish. Our team can assist with product selection, pivot configuration and quotation.
