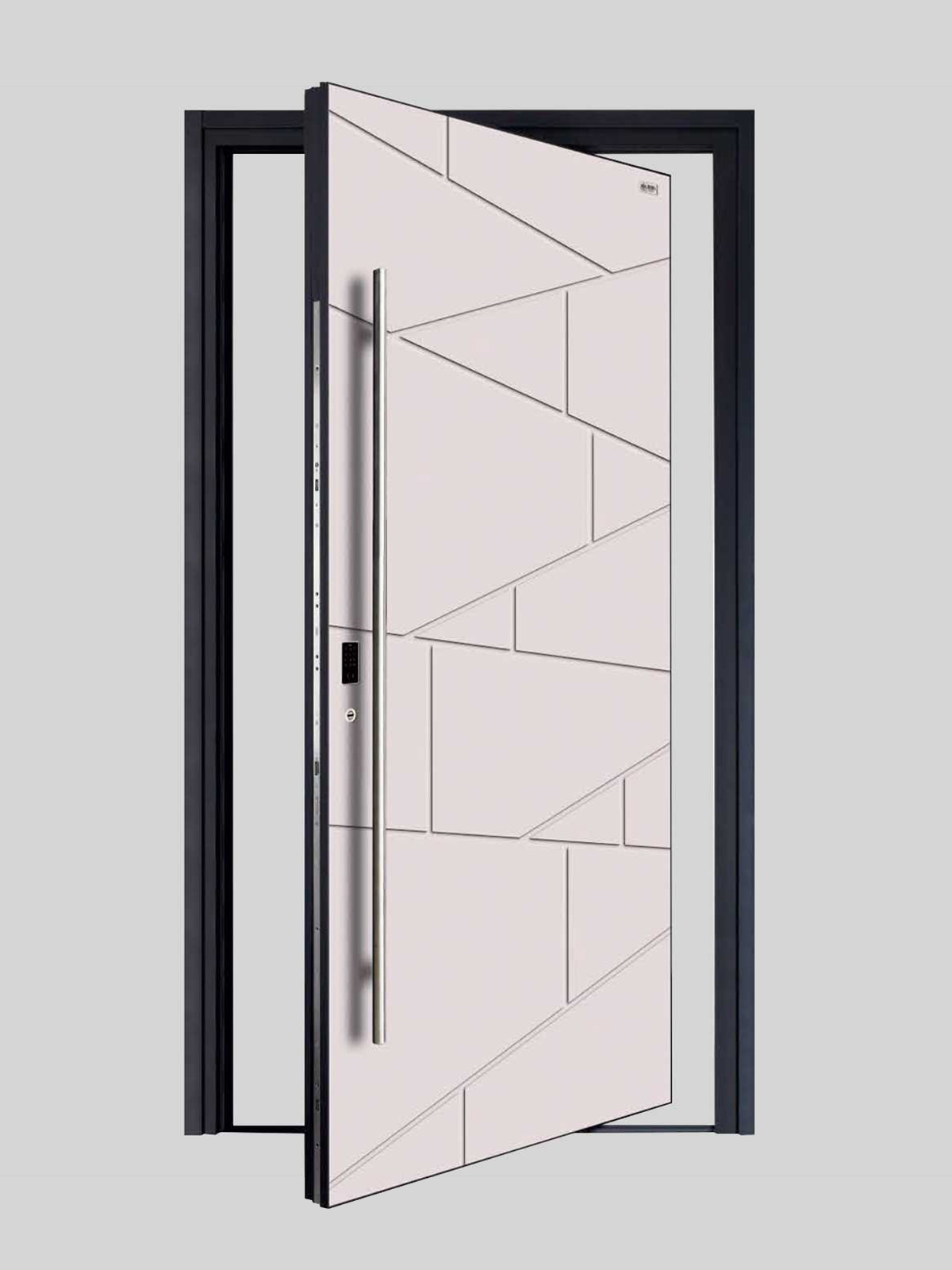

Modern Art Pivot Door
Large-format pivot slabs with sculptural panel lines, bold surfaces and strong architectural presence.
Door Type
Pivot Door Series
A large-format pivot entrance designed for architectural homes, oversized openings and statement facades, combining dramatic scale with refined materials and hydraulic pivot movement.
Overview
More than an entry door — a large architectural gesture.
Pivot Door Series is defined by scale, movement and material presence. Instead of relying on side hinges, the door leaf rotates around a pivot axis, allowing larger slabs, wider openings and a more dramatic entry experience.
This Door Type page focuses on visual direction and entrance effect. For structural details of the 125 pivot system, refer to the 125 System Pivot Door product series page.
Opening StyleLarge pivot movement with 90° positioning hydraulic axis.
Best ForOversized openings, architectural villas and statement facades.
Visual DirectionModern art, warm natural surfaces, glass integration and stone-like panels.
System LinkCan be paired with the 125 System Pivot Door structure for large-format projects.
Style Directions
Five pivot directions for statement entrances.
These directions summarize the main visual possibilities across the Pivot Door Series without turning the page into a catalogue.

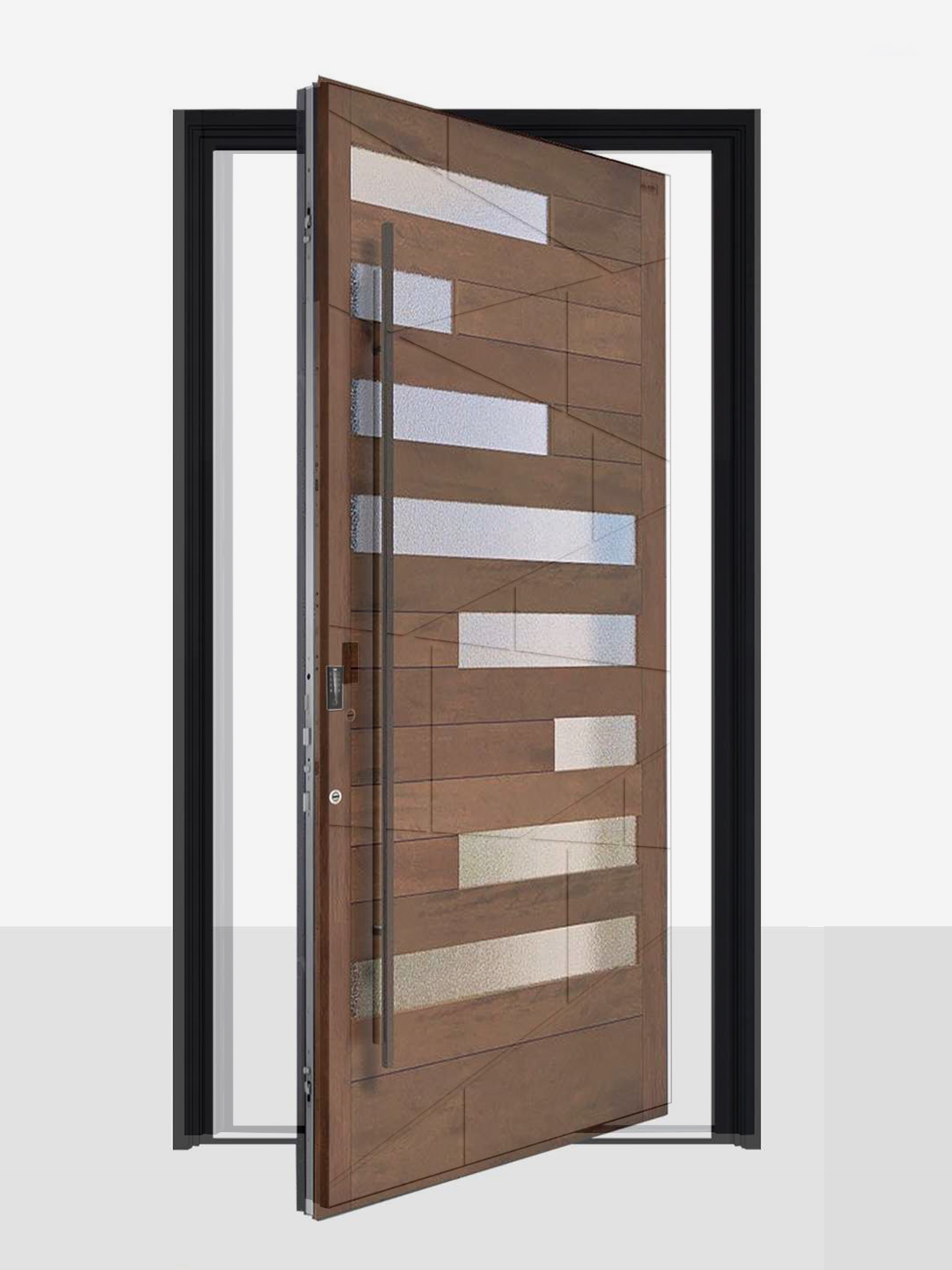

Warm Natural Pivot Door
Timber-look and warm material finishes create a softer pivot entrance for residential architecture.

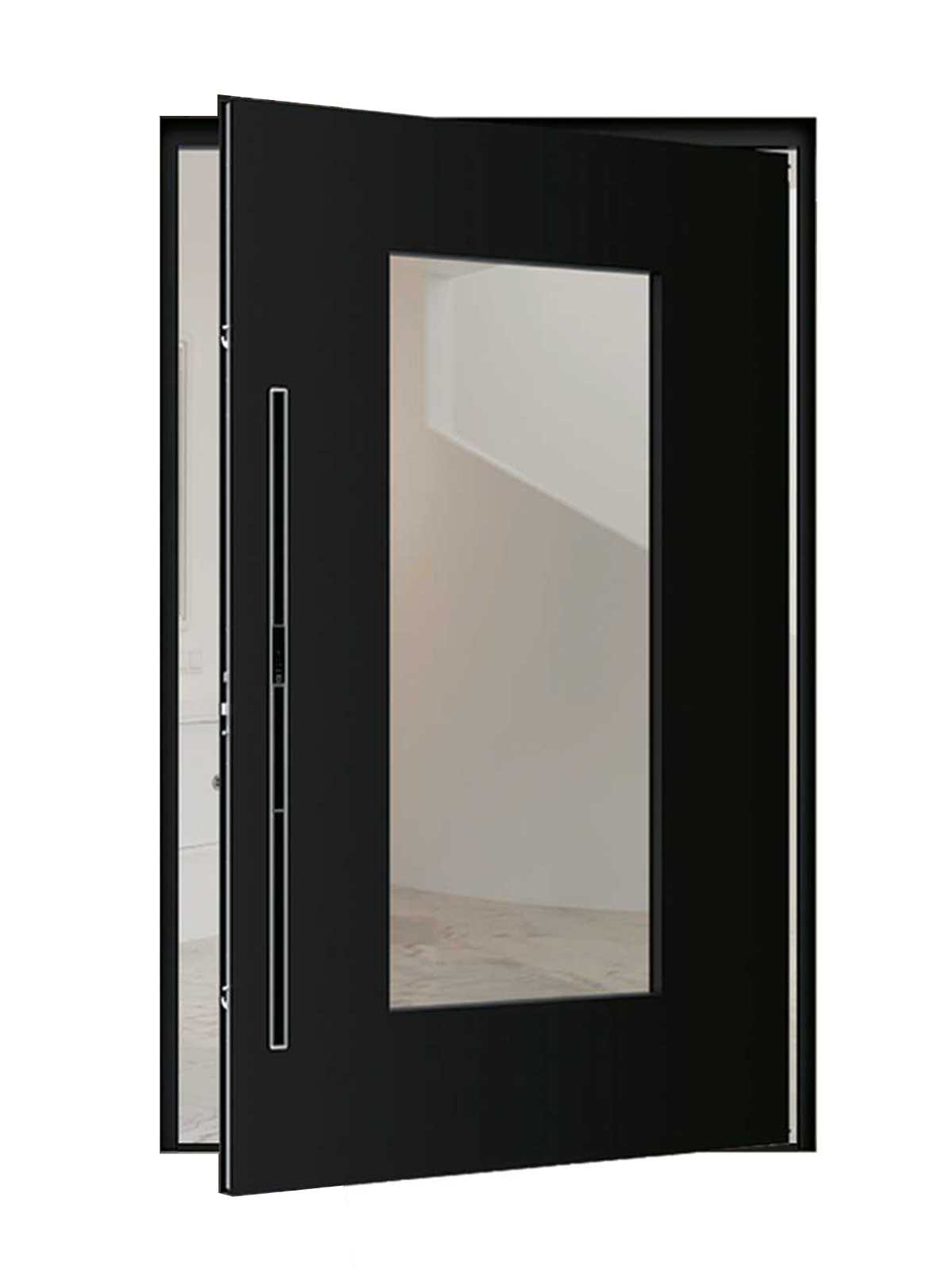

Glass-Integrated Pivot Door
Pivot openings can be coordinated with sidelights, Low-E glass and surrounding facade glazing.

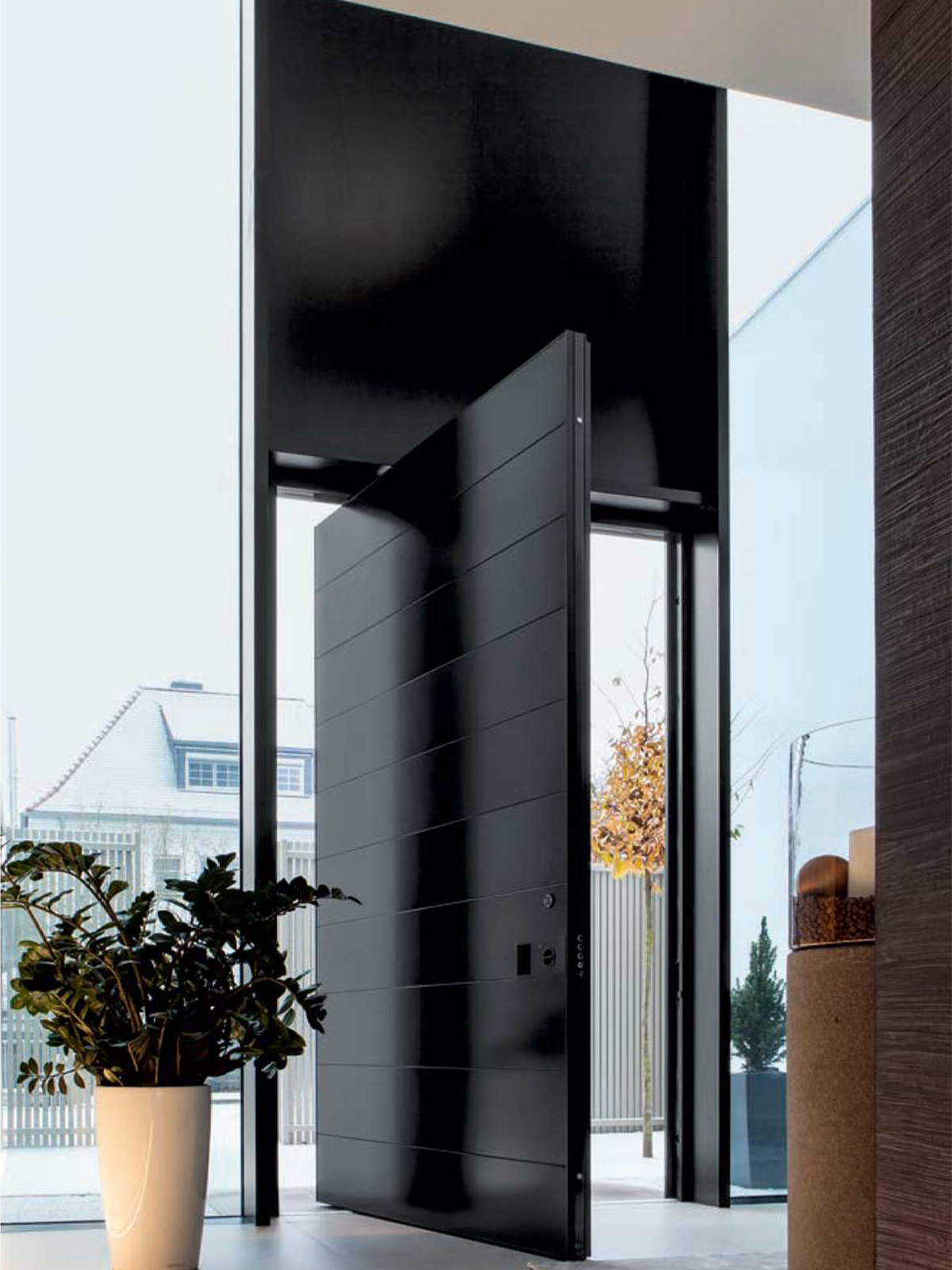

Extra-High Pivot Door
Oversized pivot compositions can reach dramatic heights for grand entrances and double-height spaces.

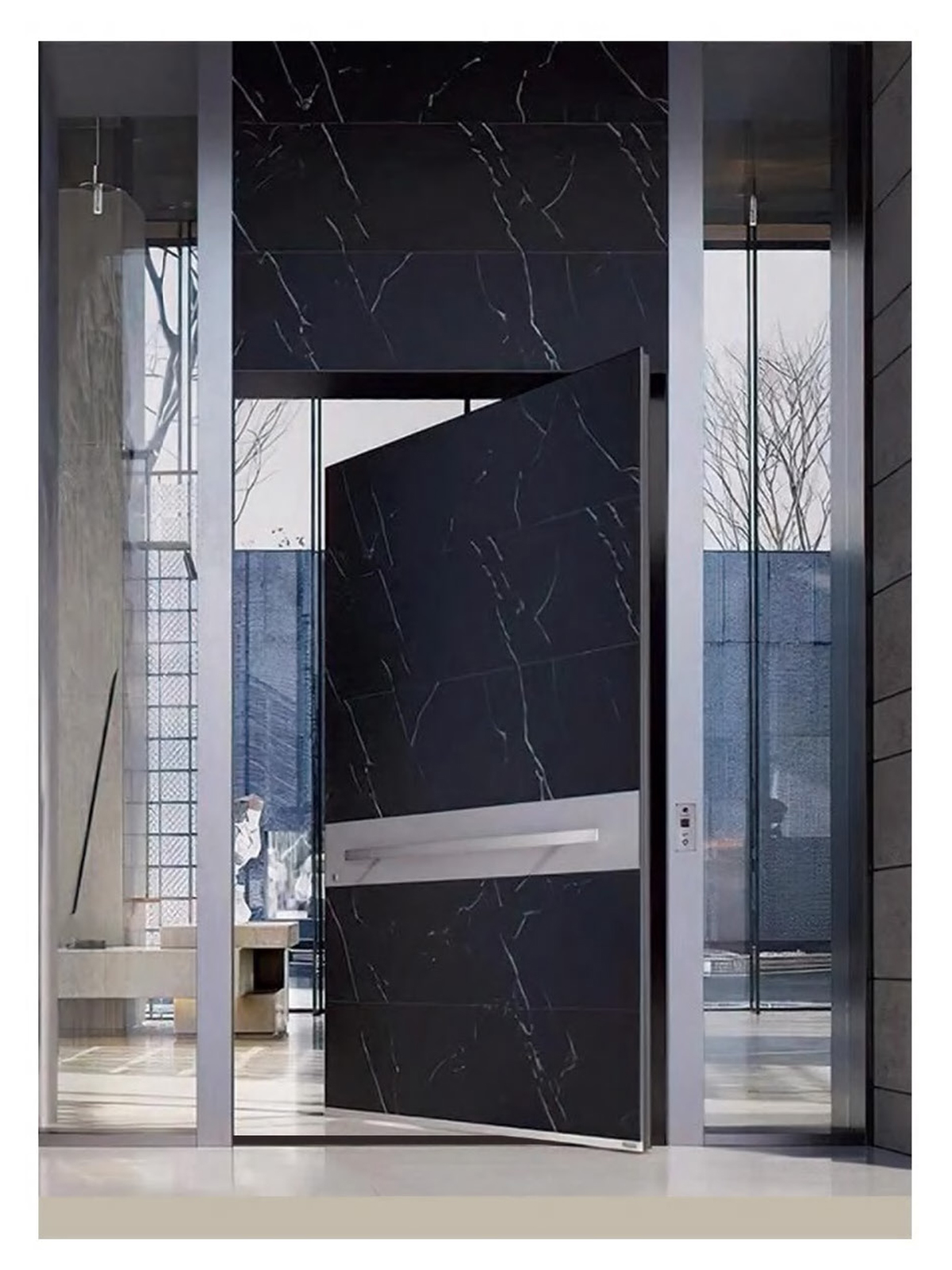

Stone & Rock Panel Pivot Door
Stone, rock and marble-like panels turn the pivot door into a refined material statement.
Technical Configuration
Large-format construction with hydraulic pivot movement.
Pivot Door styles can be configured with reinforced aluminum profiles, selected front and rear panel materials, premium sealing, smart lock compatibility and 90° positioning hydraulic axis movement.
Some configurations include Low-E glass or extra-high door options. Final specifications should be confirmed according to selected product system, opening size and engineering requirements.
Front Panel25mm precision-engraved aluminum panel / aluminum panel / stone panel / rock panel / black glass, depending on selected style
Rear Panel3mm–12mm, available in aluminum, copper, wood, stone and other selected materials
Profile MaterialHigh-strength 6060-T66 aluminum alloy
Profile ThicknessReinforced profile thickness: frame ≥3.0mm, leaf ≥2.5mm
Surface FinishAkzoNobel coating
Core MaterialA2-B1 class fire-resistant board option, subject to selected configuration
Corner JointCorner brace + laser welding
SealingAutomotive-grade EPDM soft-hard composite seal + vulcanized welding
Profile GrooveEuropean standard 24U groove
HandlesStainless steel handle / recessed handle / selected pivot handle options
Smart LockGerman GU European standard 24-point multi-lock or Bina smart lock
Frame-Leaf Connection90° positioning hydraulic axis
Glass Configuration5+12A+5 Low-E / 5+12A+5+12A+5 Low-E, available on selected styles
Extra-High OptionSelected pivot configurations may support extra-high openings, subject to project review
Key Options
Oversized movement, height and premium panel materials.
Pivot Door Series is best used when the entrance needs a stronger architectural statement than a conventional hinged door.
Oversized Pivot Opening
Pivot movement supports larger door leaf proportions and a more dramatic entry experience.
90° Hydraulic Axis
Hydraulic pivot positioning helps support smooth operation and controlled movement on selected systems.
Extra-High Door Option
Selected configurations can be considered for tall openings and grand entrance proportions.
Premium Panel Materials
Stone-like, rock, black glass, timber-look and precision-engraved aluminum panel options create different facade expressions.
Applications
Suitable for oversized entries, architectural villas and statement facades.
Pivot doors are ideal where the entry needs to become a central design moment, especially in large residences, double-height spaces and facade-led architectural projects.
Architectural VillasLarge-format entrance slabs with strong material presence.
Double-Height EntriesExtra-high configurations can enhance grand interior volumes.
Modern FacadesBlack glass, stone-like and precision panel surfaces support contemporary architecture.
Custom ProjectsPivot proportions and panel finishes should be reviewed against opening size and project requirements.
