Frame Depth
Robust structural depth designed to support load-bearing stability and system strength.
Product Series
HD Aluminum Armored Door
A high-strength aluminum entry door system engineered for security, insulation, quiet operation and refined architectural appearance.
Overview
A structural entry door system for premium residences.
The HD Aluminum Armored Door is designed for villas, private residences and architectural projects that require a stronger entrance system without compromising visual refinement.
Its 100mm frame depth, 85mm door leaf, reinforced aluminum structure and precision sealing system work together to support stability, comfort and a quiet daily-use experience.
Structural Features
Built around strength, sealing and long-term performance.
The HD system combines robust aluminum profiles, insulated door leaf construction, automotive-grade sealing and custom surface finish options.
Door Leaf Thickness
Thick door leaf construction supports insulation, stability and a premium closing feel.
Aluminum Panel
Aluminum panel options support durability, surface treatment and architectural expression.
Sealing Strips
Automotive-grade EPDM sealing helps reduce noise, dust and air leakage.

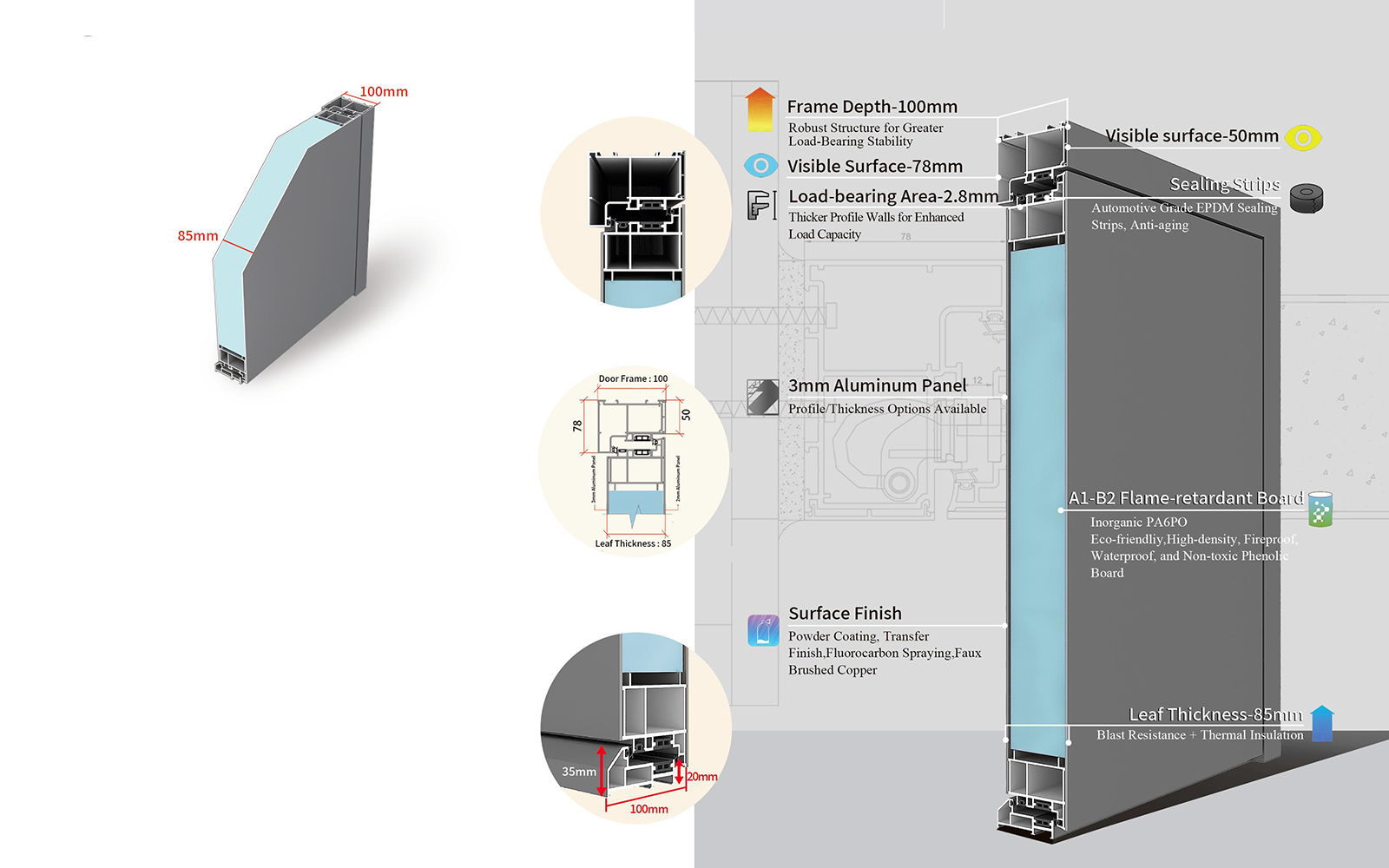

System Structure
Clear structural logic behind the door system.
The HD Aluminum Armored Door uses a standardized aluminum profile structure with dedicated sealing grooves, helping the sealing strips remain securely positioned over time.
Its reinforced profile walls, insulated internal core and multi-point sealing approach are designed to improve comfort, stability and everyday usability.
Performance Highlights
Engineered for demanding exterior environments.
High-Strength Aluminum Structure
Durable aluminum construction provides corrosion resistance, rust-free performance and strong surface coating adhesion for exterior use.
Standardized Profile Design
Precision aluminum profiles and dedicated sealant groove design support consistent assembly and reliable long-term sealing.
Dual Sealing System
Automotive-grade EPDM rubber seals provide elasticity, weather resistance and stable sealing performance across a wide temperature range.
Quiet Opening Experience
Hidden silent hinges and high-quality sealing work together to create smooth, stable and quiet opening and closing.
Thermal Comfort
Insulated door leaf construction helps improve indoor comfort by supporting better thermal performance at the entrance.
Dual-Color Customization
Exterior and interior finishes can be customized separately, allowing the door to match both the building facade and interior design language.
Specifications
Technical parameters.
Core dimensions and structural information for the HD Aluminum Armored Door system. Final configuration may vary depending on project requirements and custom options.
Product SeriesHD Aluminum Armored Door
Frame Depth100mm
Door Leaf Thickness85mm
Visible Surface78mm / 50mm visible surface references
Load-Bearing Area2.8mm profile wall load-bearing area
Aluminum Panel3mm aluminum panel options
Sealing SystemAutomotive-grade EPDM sealing strips
Core MaterialA1-B2 flame-retardant board option
Surface FinishPowder coating / transfer finish / fluorocarbon spraying / faux brushed copper
Finish Options
Exterior and interior finishes for architectural coordination.
The HD system supports different finish directions to coordinate with facade materials, interior palettes and project design requirements.
Powder Coating
Durable coating option suitable for modern architectural color palettes.
Transfer Finish
Decorative surface finish for timber-look or texture-inspired design effects.
Fluorocarbon Spraying
Premium exterior finish option for projects requiring stronger weather performance.
Faux Brushed Copper
Luxury metallic appearance for statement entrances and premium facades.
Dual-Color Configuration
Exterior and interior sides can be coordinated separately for facade and interior design.
Custom Project Finish
Finish selection can be discussed according to drawings, samples and project requirements.
Applications
Suitable for refined residential and architectural projects.
This series is suitable for modern homes, villas, luxury residences and entrance upgrades where structural performance and exterior appearance are both important.
Residential VillasPremium entrance system for private residences.
Modern HomesClean, architectural design with customizable finishes.
Project EntrancesSuitable for projects requiring consistency, performance and visual impact.
Custom RenovationsCan be configured around dimensions, facade style and hardware requirements.
Project Enquiry
Need a custom HD Aluminum Armored Door for your project?
Send us your dimensions, drawings or preferred finish. Our team can assist with product selection, configuration and quotation.
