Frame Depth
Deeper aluminum frame structure designed to support stability and enhanced thermal performance.
Product Series
105 System Armored Door
A reinforced aluminum entry door system built around a 105mm multi-chamber structure, enhanced insulation and refined architectural appearance.
Overview
A deeper system for stability, comfort and premium presence.
The 105 System Armored Door is designed for premium residences, villas and architectural projects where deeper system depth, stronger structural performance and improved insulation are required.
Its 105mm frame depth, 105mm door leaf, multi-chamber thermal break structure and four-channel EPDM sealing system support stability, thermal comfort and a more substantial architectural entrance expression.

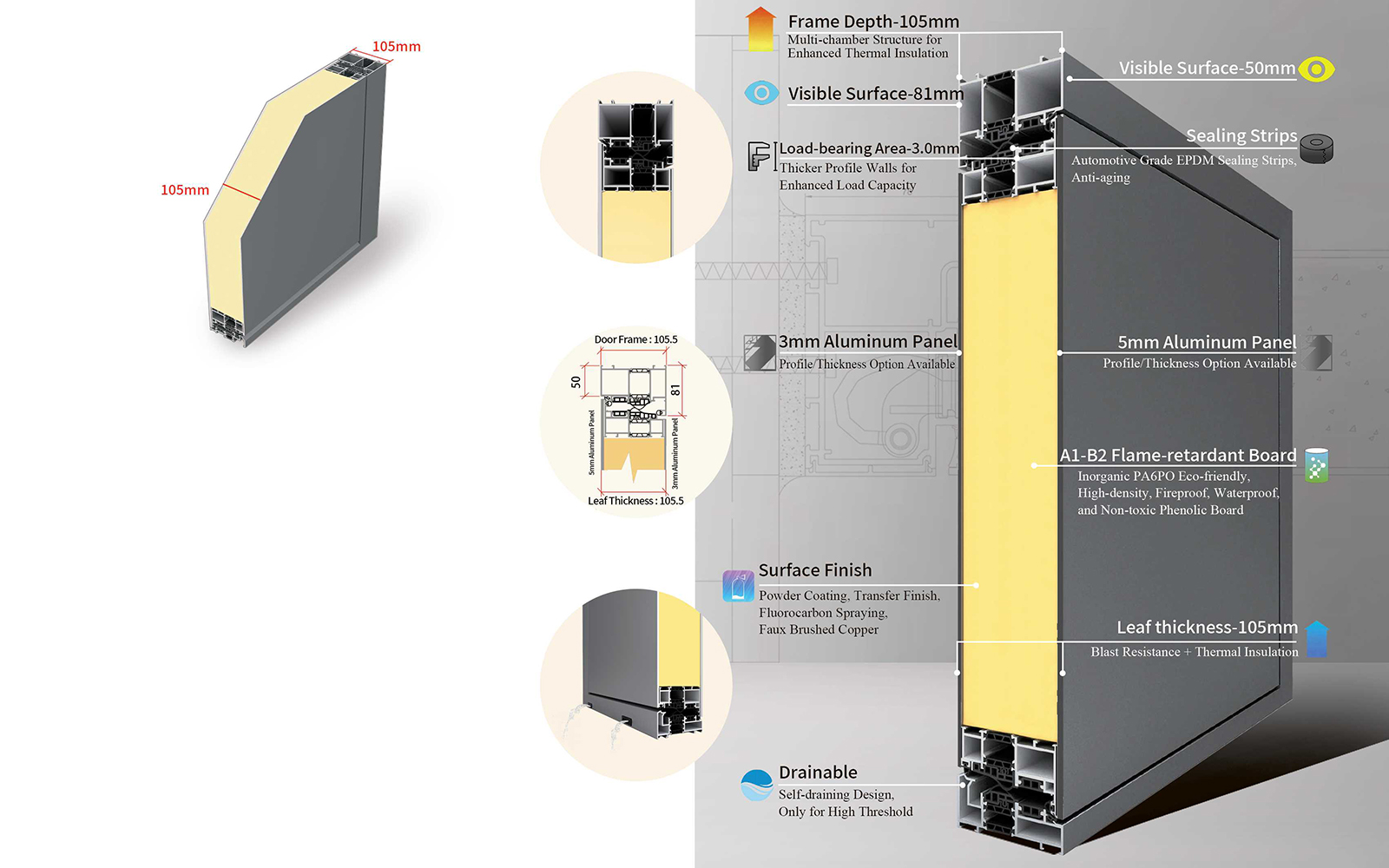

Structural Features
Built around a 105mm multi-chamber aluminum system.
The 105 system focuses on deeper structural depth, reinforced profile walls, thermal break insulation, EPDM sealing and a drainable high-threshold design option.
Door Leaf Thickness
Thicker door leaf construction supports insulation, strength and a premium closing feel.
Load-Bearing Area
Thicker profile wall reference supports enhanced load capacity and system stability.
High Threshold Option
Self-draining threshold design option helps manage water at suitable project entrances.
System Structure
Enhanced profile depth for a more capable entrance system.
The 105 System Armored Door uses a multi-chamber thermal break aluminum profile structure with reinforced profile walls and dedicated sealant strip grooves.
PA66GF25 nylon insulation strips, four-channel EPDM composite seals and 360° seamless seal connections help improve insulation logic, sealing continuity and everyday usability.
Performance Highlights
Designed for premium projects with higher system requirements.
105mm Thermal Break Structure
The 105mm multi-chamber system is designed to improve structural stability and thermal performance logic within the aluminum profile.
PA66GF25 Insulation Strips
Nylon thermal break strips help block thermal conduction through aluminum profiles, supporting a more comfortable entry environment.
Four-Channel EPDM Sealing
Automotive-grade EPDM soft-hard composite seals help reduce noise, dust and air leakage while supporting weather resistance.
360° Seal Connections
Seamless vulcanized seal connection technology helps improve sealing continuity against rainwater, dust and noise infiltration.
Drainable Threshold Option
Self-draining design is available for suitable high-threshold configurations to help manage water at the entry point.
Architectural Customization
Panel, finish, hardware and color options can be coordinated with the facade and interior design.
Specifications
Technical parameters.
Core specification direction for the 105 System Armored Door. Final dimensions and configuration should be confirmed according to project drawings and selected options.
Product Series105 System Armored Door
Frame Depth105mm
Door Leaf Thickness105mm
Visible Surface81mm / 50mm visible surface references
Load-Bearing Area3.0mm profile wall load-bearing area reference
Aluminum Profile6060-T66 aluminum profile with multi-chamber thermal break structure
Thermal BreakPA66GF25 nylon insulation strips
Aluminum Panel3mm / 5mm aluminum panel options
Sealing SystemFour-channel groove sealing with automotive-grade EPDM soft-hard composite seals
Seal Connection360° seamless vulcanized seal connection technology
Core MaterialInsulated polyurethane filling with A1-B2 flame-retardant board option
Threshold OptionSelf-draining design available for high-threshold configuration
Surface FinishPowder coating / transfer finish / fluorocarbon spraying / faux brushed copper
Finish Options
Custom finishes for stronger architectural presence.
The 105 system can be configured to match modern, classic or statement entrance designs through selected finishes, panels, handles and lock systems.
Powder Coating
Durable architectural color finish for modern exterior applications.
Transfer Finish
Decorative texture finish for timber-inspired or material-rich facade concepts.
Fluorocarbon Spraying
Premium exterior finish option for projects requiring stronger weather performance.
Metallic Finish
Luxury metallic appearance for statement entrance compositions.
Smart Lock Options
Compatible with selected smart access and hardware configurations.
Project Customization
Configuration can be discussed according to facade drawings, dimensions and finish samples.
Applications
Suitable for larger residences and premium entrances.
The 105 System Armored Door is suitable for projects that need a more substantial entrance, stronger system depth, improved sealing and a refined architectural finish.
Luxury ResidencesPremium entrance system for villas and private homes.
Architectural ProjectsSuitable for custom facades and design-led residential projects.
Comfort-Focused EntrancesMulti-chamber system design supports improved insulation logic.
Custom RenovationsCan be configured around dimensions, appearance and hardware requirements.
Project Enquiry
Need a 105 System Armored Door for your project?
Send us your dimensions, drawings or preferred finish. Our team can assist with product selection, configuration and quotation.
